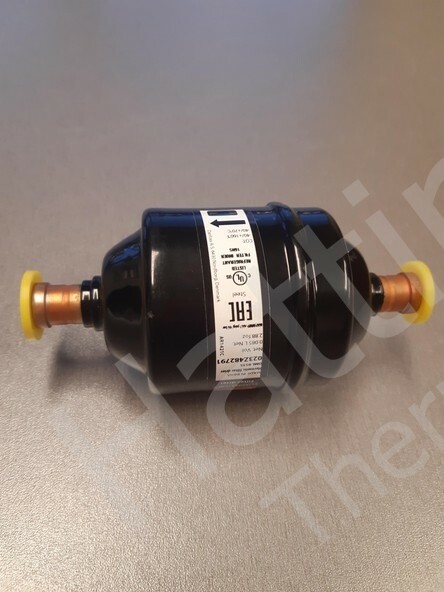

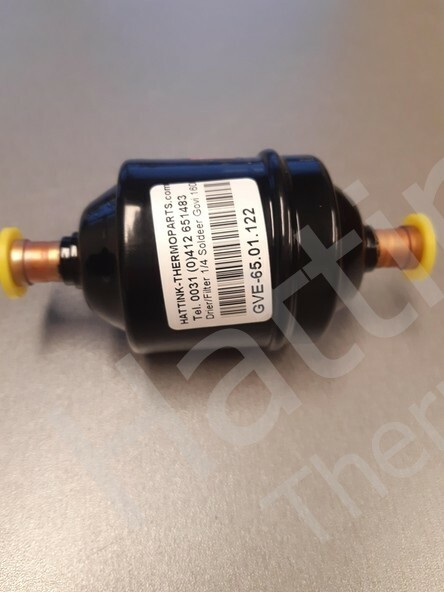

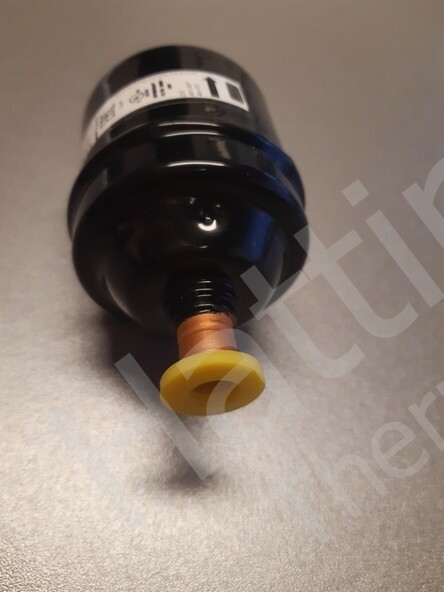

Danfoss 023Z4561
Product details
Gross weight 0.29 Kg
Net weight 0.235 Kg
Volume 0.565 Liter
EAN 5702428156981
New Type 023Z482791
Product details
Gross weight 0.329 Kg
Net weight 0.256 Kg
Volume 0.949 Liter
EAN 5702428650007
Acid capacity [g] 0.33 g
Acid capacity [oz] 0.012 oz
Activated alum/Molec sieve [%] 0% / 100%
Approval UL
Body material Steel
Braket No
Brand ELIMINATOR
Connection material Steel Cu-plated
Core Solid core
Core Size code 05 cu.in.
Drying Cap[Drops of Water]24°C R134a: 155
Drying Cap[Drops of Water]52°C R134a: 141
Flow capacity [kW] R134a: 16.0
Flow capacity [TR] R134a: 4.5
Flow direction indicator Label printed 1-way arrow
Fluid Group 2
Inlet connection size [mm] 10 mm
Inlet connection type Solder, ODF
LiqCap Cond (ARI 710-2009)[SI] Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP] Delta p=1psi
tliq= 86°F
tvap=5°F
Lubricants compatibility Oilfree applications
Max. Working Pressure [bar] 46 bar
Max. Working Pressure [psig] 667 psig
Net volume [foz US] 2.88 Fluid Ounce US
Net volume [l] 0.085 L
Oil free refrigerants R1234ze(E)
R134a
R513A
R515A
Outlet connection size [mm] 10 mm
Outlet connection type Solder, ODF
Packing format Industrial pack
PED category Art. 3, par. 3
Product description Liquid line filter drier
Product group Filter driers
Product Name Description Hermetic filter drier
Quantity per packing format 16 pc
Refrigerants R1234yf
R125
R134a
R22/R407C
R23
R290
R32
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R444B
R448A
R449A
R449B
R450A
R452A
R452B
R454B
R455A
R507A
R513A
R600
R1234ze(E)
R1233zd(E)
R407H
R454A
R463A
R516A
R454C
R515B
Serviceable No
Shell volume [foz US] 4.12 Fluid Ounce US
Shell volume [l] 0.12 L
Solid core surface [cm2] 82 cm²
Solid core surface [in2] 12.72 in²
Solid core volume [cm3] 37 cm³
Solid core volume [in3] 2.25 in³
Temperature range [°C] [max] 70 °C
Temperature range [°C] [min] -40 °C
Temperature range [°F] [max] 160 °F
Temperature range [°F] [min] -40 °F
Type DML
Type designation DML 053S
UL approval file name SA6398
UL approved refrigerants R125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
